iMediSync’s new product that creates the perfect harmony of lightness, accuracy and durability
PRODUCTS

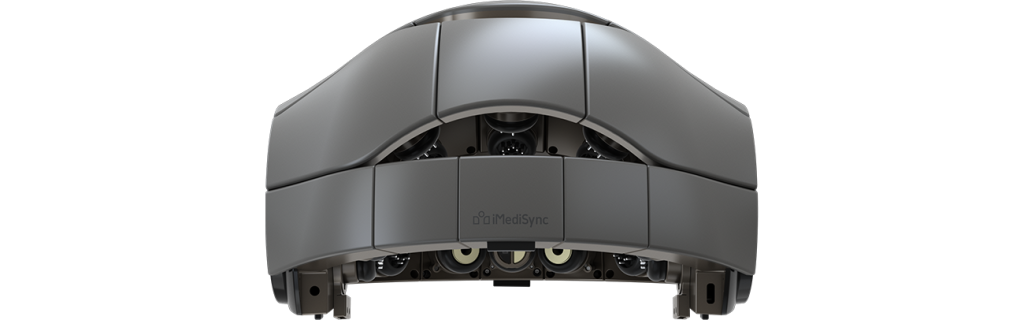

iSyncMe
iSyncMe
Features
QEEG-guided location and
frequency protocols for
optimum therapeutic response
Pre & Post intervention
monitoring via client-friendly
dry EEG monitoring
Telemental care
Personalized mental care solution
Device details and Specifications
| Parameters | Values |
|---|---|
| EEG & HRV | |
| Weight | 1200 g |
| Dimensions | 235(L) x 225(W) x 149(H) mm |
| Head Circumference | 41.5 cm – 64.2 cm |
| Channels | |
| EEG | 19 EEG Channels + 1 Fpz Ground Channel |
| Auxiliary | Fpz Channel: PPG Ground / Right: No Channel / Left: Ref Channel |
| EEG Electrode | Dry-Type Ag/AgCl-Coated Conductive Polymer |
| Power | |
| Battery | Rechargeable Li-Ion Battery |
| Charging | USB-C Type with 5V/2.0A, 9V/1.5A Adapter |
| Charging Time | 90 min |
| Runtime | 7 Hours |
| Amplifier | |
| Bandwidth | 0.5 – 50 Hz |
| Sampling Rate | 250 Hz |
| Special Design | Analog Front End (AFE) |
| A/D Converter | 24 Bit |
| Connectivity | |
| Bluetooth | Bluetooth v5.1 (LE up to 2Mbps) |
| LED | |
| Irradiance Source | 19 LED Bulbs (Built-in the center of each EEG electrode) |
| Wavelength | Near-Infrared 850 nm |
| Pulse Rate | 1 – 45 Hz (Adjustable in 1Hz Increments) |
| Parameters | Values |
|---|---|
| Software Information | |
| Name of Software | iSyncWave Download from Google Playstore |
| Compatible Devices | Samsung Galaxy Tab S6(Lite), S7, S8 or Above *S7 FE specification exclusion |
| OS | Android 11 or Above *The above specifications may differ from country to country, so it may be necessary to contact the service center in the country concerned. |
| Minimum Requirements | |
| CPU | Octa-Core / 2.3 GHz, 1.7 GHz |
| RAM | 4 GB |
| Recommended Requirements | |
| CPU | Octa-Core / 3.09 GHz, 2.4GHz, 1.8 GHz |
| RAM | 12 GB |
