PRODUCTS

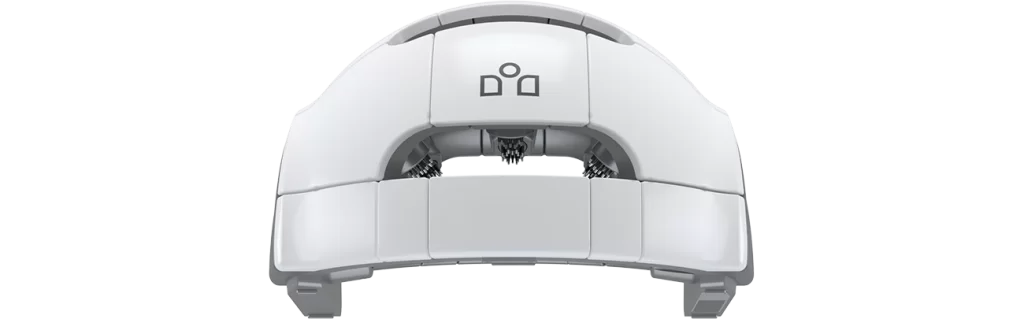

iSyncWave
Wireless Dry EEG Measurement and Therapy Device
Soft Fitting, Expandible, Wireless, Dry EEG Device with Near-Infrared Photobiomodulation AI Brain Scanning & Enhancing System
iMediSync este ideal pentru pacienți care caută evaluări rapide și precise ale sănătății cerebrale dar si solutii personalizate eficiente , precum și profesioniști din domeniul medical care doresc tehnologie avansată.
iSyncWave
Features
QEEG-guided location and
frequency protocols for
optimum therapeutic response
Pre & Post intervention
monitoring via client-friendly
dry EEG monitoring
Telemental care
Personalized mental care solution
Device details and Specifications
| Parameters | Values |
|---|---|
| EEG & HRV | |
| Weight | 1600 g |
| Dimensions | 245(L) x 243(W) x 153(H) mm |
| Head Circumference | 50 cm – 62 cm |
| Channels | |
| EEG | 19 EEG Channels + 1 Fpz Ground Channel |
| Auxiliary | Right: 1 PPG Channel / Left: A1 Reference Channel |
| EEG Electrode | Dry-Type Ag/AgCl-Coated Conductive Polymer |
| Power | |
| Battery | Rechargeable Li-Ion Battery |
| Charging | USB-C Type with 5V/2A Adapter |
| Charging Time | 132 Min |
| Runtime | 7 Hours |
| Amplifier | |
| Bandwidth | 0.5 – 50 Hz |
| Sampling Rate | 250 Hz |
| Special Design | Analog Front End (AFE) |
| A/D Converter | 24 Bit |
| Connectivity | |
| Bluetooth | Bluetooth v5.0 (LE up to 2Mbps) |
| LED | |
| Irradiance Source | 19 LED Bulbs (Built-in the center of each EEG electrode) |
| Wavelength | Near-Infrared 850 nm |
| Pulse Rate | 1 – 45 Hz (Adjustable in 1Hz Increments) |
| Parameters | Values |
|---|---|
| Software Information | |
| Name of Software | iSyncWave Download from Google Playstore |
| Compatible Devices | Samsung Galaxy Tab S4, S6(5G, Lite), S7(+, FE 5G), Samsung Galaxy Tab A (2016)/ Active Pro, 2, 3 |
| OS | Android 8 or Above |
| Minimum Requirements | |
| CPU | Octa-Core / 2.3 GHz, 1.7 GHz |
| RAM | 4 GB |
| Recommended Requirements | |
| CPU | Octa-Core / 3.09 GHz, 2.4GHz, 1.8 GHz |
| RAM | 12 GB |
